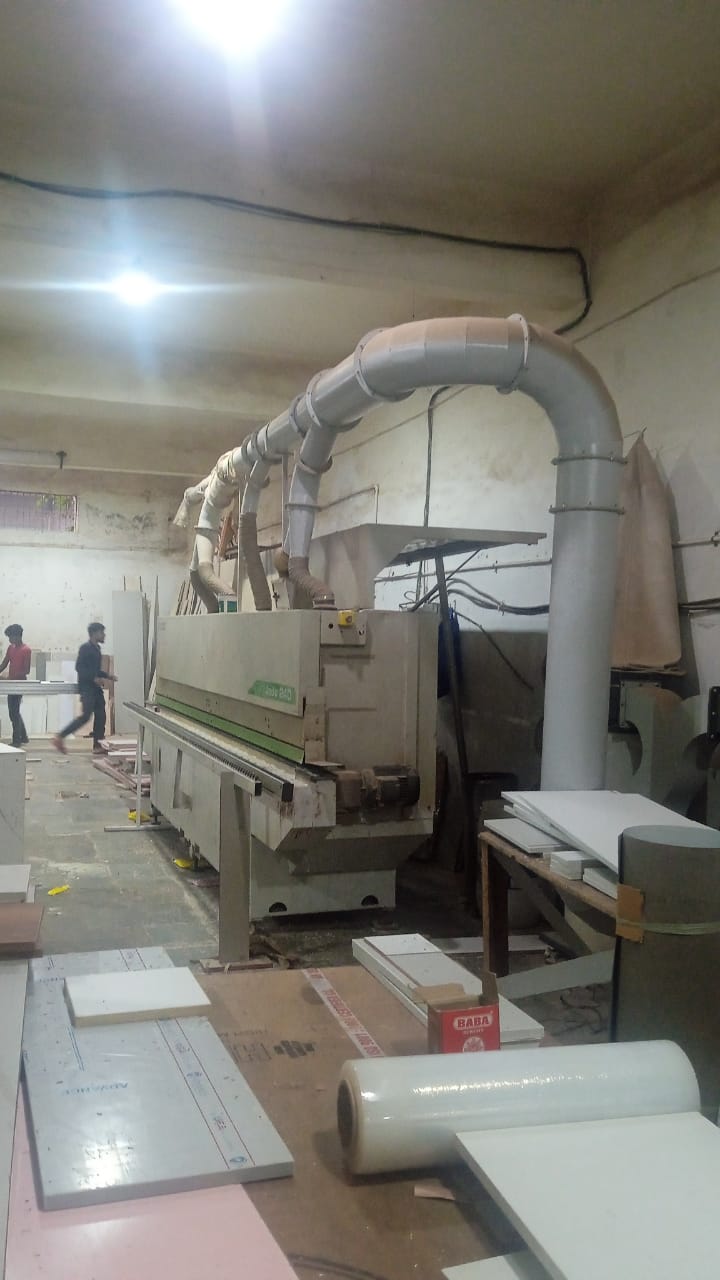

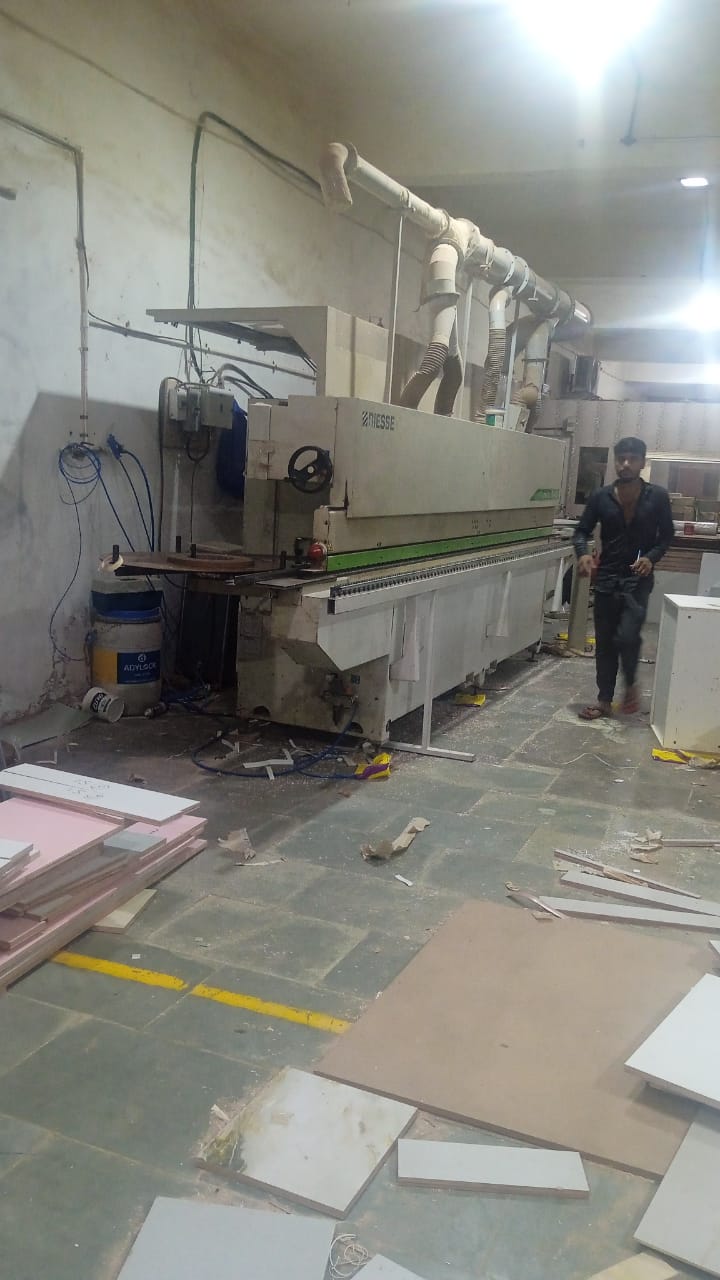

Biesse - Jade 240
Gluing unit Cutting unit Trimming unit Rounding unit Radius-Scraping unit Glue scraping unit Brushing unit
Technical specifications
| Specification | Details |
|---|---|
| Total length of the machine | 4168 mm |
| Panel thickness | 10 - 60 mm |
| Height of the edge materials | 14 - 64 mm |
| Edge thickness | 0,4 - 3 / 8 mm |
| Feedrate | 12 m/min |
| Min. panel length | 150 mm |
| with 150 mm length | 85 mm |
| with 250 mm length | 50 mm |
| Machine | Auto Edge Banding |
| Make | Biesse |
| Model | Jade 240 |
| Year of Mfg. | 2014 |
